Layered Deposits and Wind Ripples
ESP_070049_2170 Science Theme: Sedimentary/Layering Processes

HICLIP
1080p (MP4)
Audio (MP3)

WALLPAPER
800
1024
1152
1280
1440
1600
1920
2048
2560
2736
2880
3072
4500
4K
8K
10K

HIFLYER
PDF (11 x 17)

HISLIDES
PowerPoint
Keynote
PDF

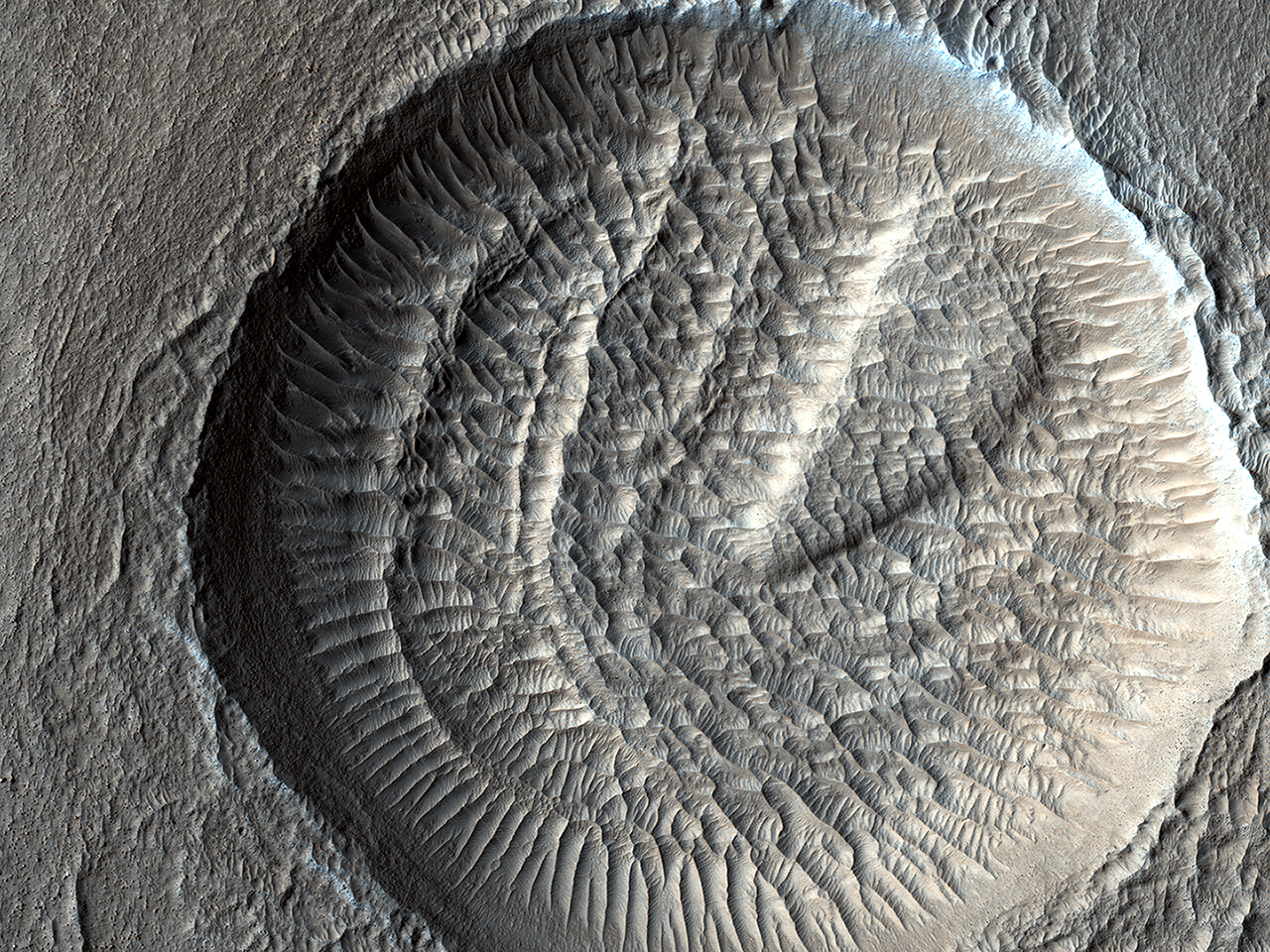

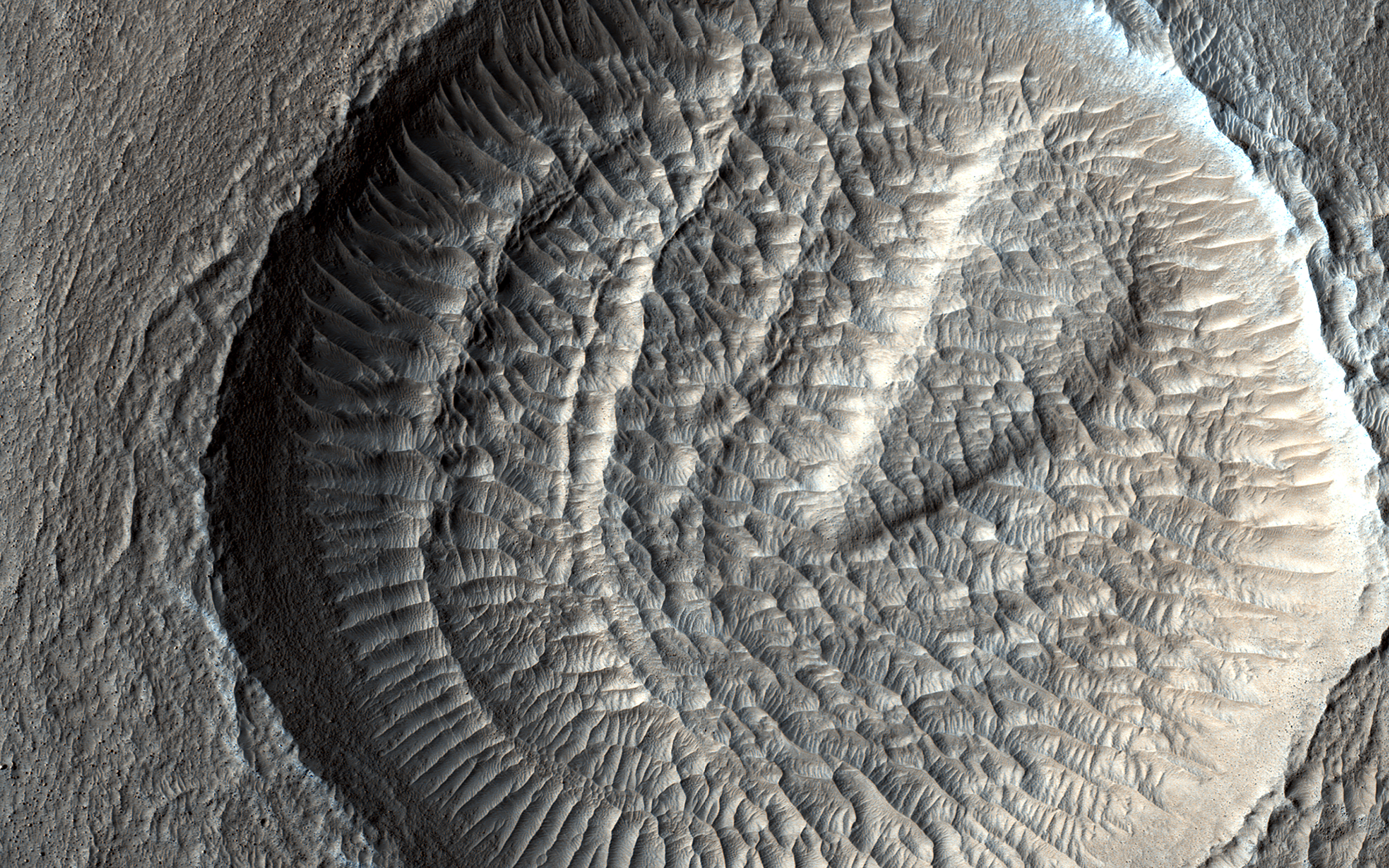

These impact craters in the northern middle latitudes have interesting interiors: all of them have wind-blown (aeolian) ripples.

Outside of the craters and along the crater floors, the ripples are all oriented in the same direction. However, along the walls of some of the larger craters, the ripples are situated radially away from the center, indicating the winds moving inside the larger craters can be influenced by the topography of the crater wall.

Additionally, many of the larger craters have layered mesas along their floors that are likely sedimentary deposits laid down after the craters formed but prior to the development of the aeolian ripples.

Written by: Cathy Weitz (narration: Tre Gibbs) (16 November 2021)

Acquisition date
06 July 2021

Local Mars time
15:34

Latitude (centered)
36.745°

Longitude (East)
65.080°

Spacecraft altitude
292.2 km (181.6 miles)

Original image scale range
58.6 cm/pixel (with 2 x 2 binning) so objects ~176 cm across are resolved

Map projected scale
50 cm/pixel and North is up

Map projection
Equirectangular

Emission angle
3.4°

Phase angle
44.2°

Solar incidence angle
48°, with the Sun about 42° above the horizon

Solar longitude
68.4°, Northern Spring

For non-map projected images
North azimuth: 96°
Sub-solar azimuth: 4.8°

JPEG
Black and white
map projected  non-map

IRB color
map projected  non-map

Merged IRB
map projected

Merged RGB
map projected

RGB color
non-map projected

JP2
Black and white
map-projected   (258MB)

IRB color
map-projected   (138MB)

JP2 EXTRAS
Black and white
map-projected (106MB)
non-map           (141MB)

IRB color
map projected (42MB)
non-map           (121MB)

Merged IRB
map projected (279MB)

Merged RGB
map-projected (261MB)

RGB color
non map           (115MB)

BONUS
4K (TIFF)
8K (TIFF)
10K (TIFF)

ADDITIONAL INFORMATION
B&W label
Color label
Merged IRB label
Merged RGB label
EDR products
HiView

NB
IRB: infrared-red-blue
RGB: red-green-blue
About color products (PDF)

Black & white is 5 km across; enhanced color about 1 km
For scale, use JPEG/JP2 black & white map-projected images
