Multi-Elevation Gullies
NASA/JPL/University of Arizona
Multi-Elevation Gullies
ESP_057450_1410  Science Theme: Mass Wasting Processes
twitter  •  tumblr

HICLIP
1080p (MP4)
Audio (MP3)

WALLPAPER
800
1024
1152
1280
1440
1600
1920
2048
2560
2736
2880
4500
4K
8K
10K

HIFLYER
PDF (11 x 17)

HISLIDES
PowerPoint
Keynote
PDF

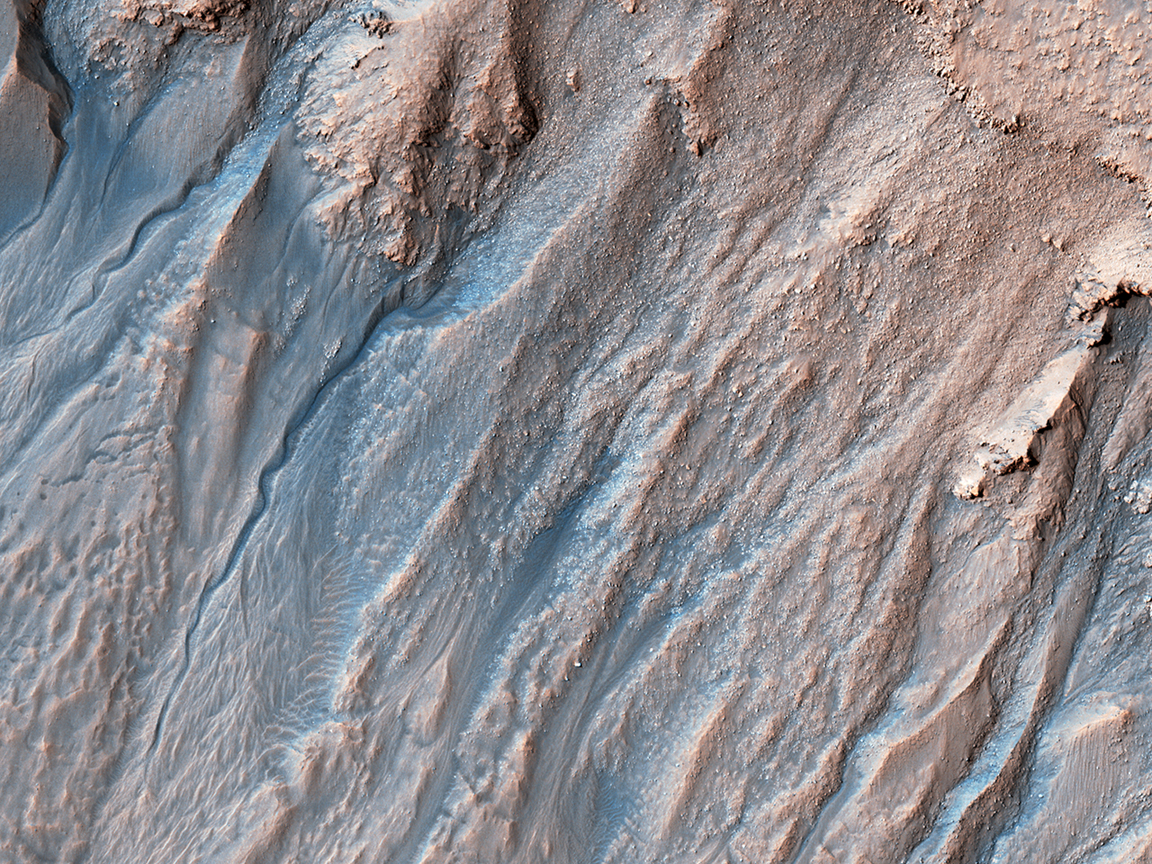

Gullies probably formed along the bouldery layers in the upper slopes of this unnamed crater within the last few million years. Gullies eroded these crater slopes and transported sediment downslope forming debris aprons multiple times.

These older apron surfaces were cut by numerous fractures running perpendicular to the slope. Subsequent episodes of gully activity eroded through these fractures and deposited new aprons.

On the floor of the crater are ridges with bouldery layers. These ridges may mark the furthest extent of glaciers that predate much of the original gully activity. Bright flows continue to form in these gullies seasonally.

In the upper gully regions, long shadows cast by jagged outcrops allow scientists to determine the heights and depths of landforms by measuring the length of the shadows cast by the ridges onto the gully floor.

Written by: Ginny Gulick (audio: Tre Gibbs)  (22 January 2019)

Acquisition date
28 October 2018

Local Mars time
14:37

Latitude (centered)
-38.648°

Longitude (East)
168.828°

Spacecraft altitude
251.5 km (156.3 miles)

Original image scale range
25.2 cm/pixel (with 1 x 1 binning) so objects ~75 cm across are resolved

Map projected scale
25 cm/pixel and North is up

Map projection
Equirectangular

Emission angle
0.3°

Phase angle
35.9°

Solar incidence angle
36°, with the Sun about 54° above the horizon

Solar longitude
277.9°, Northern Winter

For non-map projected images
North azimuth:  97°
Sub-solar azimuth:  16.6°
JPEG
Black and white
map projected  non-map

IRB color
map projected  non-map

Merged IRB
map projected

Merged RGB
map projected

RGB color
non-map projected

JP2
Black and white
map-projected   (581MB)

IRB color
map-projected   (333MB)

JP2 EXTRAS
Black and white
map-projected  (288MB)
non-map           (327MB)

IRB color
map projected  (105MB)
non-map           (287MB)

Merged IRB
map projected  (136MB)

Merged RGB
map-projected  (129MB)

RGB color
non map           (273MB)
ADDITIONAL INFORMATION
B&W label
Color label
Merged IRB label
Merged RGB label
EDR products
HiView

NB
IRB: infrared-red-blue
RGB: red-green-blue
About color products (PDF)

Black & white is 5 km across; enhanced color about 1 km
For scale, use JPEG/JP2 black & white map-projected images
